Product teams often reach a difficult point after a CAD design passes initial review: the part must be tested in a form that behaves more like the intended molded product, yet conventional production tooling may demand too much time or investment. The useful question is therefore not whether fast tooling is simply cheaper, but how a tooling strategy can expose design issues before production commitments become expensive.
Where Tooling Enters the Development Decision
Prototype tooling sits between early concept validation and full-scale production tooling. Instead of waiting for a production mold, an engineering team can use a simplified tooling route to obtain molded samples for functional and dimensional evaluation.
The distinction matters because a prototype is valuable when its manufacturing method reveals information relevant to the final product. A molded component can expose issues involving draft, wall thickness, gate placement, ejection, warpage, sink marks, and surface finish that may not appear in a visual model.
A Practical Workflow From CAD to Molded Samples
The process begins with design for manufacturability rather than immediately cutting metal. HordRT describes its DFM review as covering parting lines, gate position and size, ejector locations, wall thickness, surface finish, tolerances, and potential molding defects. That review lets engineers resolve manufacturability risks before machining.
Once the DFM direction is approved, tooling components are machined and fitted. The referenced workflow includes CNC machining, gun drilling, EDM, and wire cutting, followed by fitting and polishing before mold trials. This sequence is significant because prototype tooling still has to function as a mold, rather than merely reproduce the geometry of a CAD file.
Trial molding then turns design assumptions into physical evidence. Material preparation, machine setup, filling trials, and dimensional inspection provide feedback that can be carried into the next engineering revision.
The Tooling Material Changes the Equation
Material selection directly affects how quickly a prototype tool can be machined and how long it can remain useful. The supplied reference identifies hard aluminum 7075 and carbon structural steel 1050 (S50C) as options for rapid processing and cost reduction. It reports a typical life of 500 to 5,000 shots for 7075 tooling, while noting that P20 or NAK80 tooling can reach up to 50,000 shots in its case-study information. These figures are source-specific rather than universal specifications.
That distinction should influence quoting. A team expecting engineering samples has different tooling needs from one planning pilot production. Tool life, part complexity, sample quantity, and required material should be considered together rather than treating the lowest initial tooling price as the only objective.
Why the Development Loop Can Become Faster

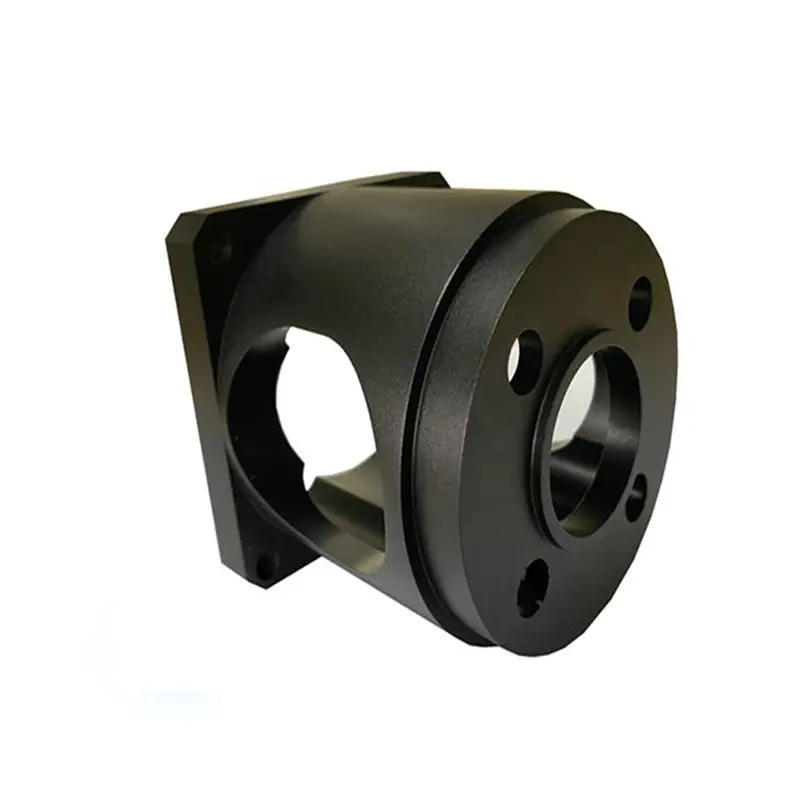

Speed comes from reducing waiting between engineering decisions. HordRT states that its prototype tooling lead time is usually one to two weeks, with complex or large tooling taking longer. Its prototype service page also lists CNC machining, injection molding, sheet metal fabrication, and urethane casting.
A faster loop does not eliminate engineering work. Instead, it moves critical decisions earlier. Designers can examine molded parts, identify changes, and repeat the validation cycle before committing to a more expensive production-tool configuration.
The approach is particularly relevant when requirements or technical aspects remain uncertain. HordRT’s reference specifically describes rapid prototyping as suitable during product development when underlying technical requirements are not yet fully understood.
What Engineers Should Define Before Quoting
A useful RFQ should communicate more than a 3D CAD file. Part material, quantity, critical dimensions, cosmetic requirements, expected tool life, and delivery objectives give the tooling team context for an appropriate solution.
Part geometry deserves equal attention. Deep features, difficult shutoffs, complex slides, tight tolerances, and demanding cosmetic surfaces can affect the tooling design and machining route. The DFM stage should therefore be treated as an engineering discussion, not merely a quotation formality.
For prototype programs, the supplier reports that its tooling can accommodate engineering changes after samples run, although customer-driven changes can create additional costs. That makes revision planning important: teams should identify which dimensions and features are still experimental and which are considered stable.
When Prototype Tooling Is the Better Development Step
A common use case is a product that requires molded parts for evaluation before production tooling is justified. Functional evaluation, fit checks, appearance reviews, assembly testing, and market-oriented sample development may benefit from having physical parts available earlier, provided that the tool and process are selected according to the intended validation goals.
A prototype tool should not automatically be treated as a miniature production mold. Its purpose is to answer specific engineering questions at a stage when changes are still practical. If those questions are clearly defined, tooling decisions become easier to justify and the resulting samples become more informative.
Turning Validation Into a Production Decision
The real value of rapid prototype tooling is not simply obtaining parts quickly. It is creating a controlled checkpoint between digital design and production commitment. DFM feedback identifies potential issues before machining, tool construction converts the design into a repeatable molding method, and trial parts reveal whether the assumptions survive physical manufacturing.
For teams approaching a production launch, that sequence can make the transition more evidence-based. The right prototype tool is therefore the one designed around the decisions the project still needs to make—not merely the one that arrives first.
