The journey from a digital concept to a physical product requires validation steps that balance cost, speed, and material performance. Engineers often face choices between machining, 3D printing, and injection molding when developing functional models. Among these options, vacuum casting emerges as a uniquely versatile bridge, particularly during early design iterations and functional testing phases.
When development timelines shrink, choosing the right method for rapid prototype manufacturing determines how quickly a product can reach the market. Companies must test form, fit, and mechanical function without committing to expensive, permanent steel tooling. This specific polyurethane replication process fills the gap perfectly, allowing engineering teams to validate assumptions with high-fidelity components.
Understanding the Vacuum Casting Replication Process
The methodology relies on a master pattern, typically created via high-precision 3D printing or CNC machining, to form a flexible silicone mold. Once the mold cures, it is split to create a cavity that matches the master geometry precisely. Liquid polyurethane resins are then introduced into this cavity under a vacuum chamber environment.
The vacuum environment is critical because it eliminates air bubbles, ensuring that the liquid resin fills every intricate channel and thin wall. After the resin cures inside a heated oven, the mold is opened to reveal a dense, high-fidelity copy. This process can be repeated up to twenty times per mold before the silicone begins to degrade.
Achieving True Production Material Properties
A significant benefit of this approach is the wide range of polyurethane resins formulated to mimic production plastics. Engineers can select resins that closely replicate the mechanical behavior, flexibility, and thermal properties of ABS, polycarbonate, polypropylene, or even elastomeric rubbers.
This flexibility allows functional prototypes to undergo rigorous physical testing, such as drop tests, snap-fit assemblies, and environmental exposure. The resulting data provides genuine insights into how the final injection-molded part will behave under real-world stresses.
Cost–Effective Verification for Small Batches
Creating hard tooling for injection molding involves significant capital expenditure and weeks of fabrication time, which is impractical for validation stages. Conversely, 3D printing can become prohibitively expensive and time-consuming when dozens of identical, high-strength parts are required for field testing.
Silicone molds cost a fraction of the price of metal tooling and can be fabricated within days. This economic profile makes the system ideal for producing pre-production batches, clinical trial units, or marketing samples. Budgets can be allocated toward refining the design rather than absorbing the costs of tooling modifications.
Exceptional Surface Quality and Fine Geometric Detail
Visual fidelity is just as critical as mechanical performance when presenting to stakeholders or conducting user experience testing. The liquid resin captures every micro-texture, sharp edge, and fine engraving present on the original master pattern with extreme accuracy.
Consequently, parts emerge from the mold requiring minimal post-processing to achieve a commercial appearance. The process easily accommodates complex features like overmolding, threaded brass inserts, and internal undercuts that would be difficult or impossible to machine conventionally.
Mitigating Design Risks Before High Volume Tooling
Discovering a geometric error or a mechanical flaw after cutting a steel production mold can result in catastrophic delays and financial losses. Utilizing temporary silicone molds allows engineers to discover these issues early when designs are still fluid and malleable.
Multiple design variants can be cast simultaneously in the same batch to compare performance characteristics side by side. This iterative freedom drastically reduces the overall risk profile of the project, ensuring that final tooling investments are based on proven, optimized geometries.
Streamlining Supply Chains with Fast Turnaround Options
In competitive industries, the speed of iteration dictates market leadership, making traditional fabrication timelines a liability. The simplicity of the vacuum replication setup allows parts to move from CAD design to physical reality in less than a week.
This agility helps procurement teams and project managers maintain strict project milestones even when unexpected design changes occur. Rapid turnarounds ensure that downstream operations, such as electronics assembly or compliance certification, face zero downtime.
Integrating Advanced Materials into Prototyping Workflows
Beyond standard rigid plastics, modern resin chemistry allows for specialized properties including flame retardancy, UV stability, and biocompatibility. This enables the creation of functional models for highly regulated sectors such as medical devices and aerospace components.
Engineers can test how transparent enclosures handle light transmission or how soft-touch overmolded grips feel to the human hand. The ability to mix colors and achieve specific shore hardness levels provides unparalleled customization during product validation.
Professional End–to–End Manufacturing Capabilities

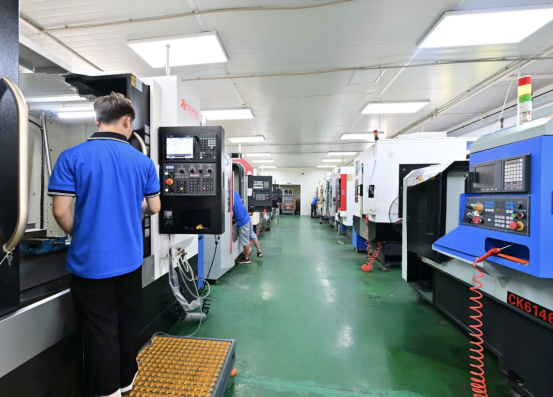

In the selection of a rapid prototype manufacturing partner, modern enterprises demand both comprehensive fabrication expertise and rigorous quality assurance protocols. APT‑Mold offers an end‑to‑end custom manufacturing framework that guides development teams from the initial digital design phase through to the delivery of finished physical assets.
[CAD Design] ➔ [24-Hour Quote] ➔ [DFM Feedback] ➔ [Silicone Tooling] ➔ [Inspection]
The engineering team at APT-Mold reviews drawings to deliver transparent communication, accurate pricing, and realistic lead times within 24 hours. Operating under ISO 9001:2015 standards, the facility guarantees incoming material verification and final inspection to ensure regulatory goals are met.
Conclusion
Vacuum casting serves as a vital bridge in modern manufacturing, offering the material realism of injection molding with the speed of additive techniques. Utilizing this method protects capital, accelerates testing cycles, and ensures product designs are thoroughly optimized before mass production begins.
